What is El-Space?

"El-Space" is the area beneath and adjacent to elevated transportation infrastructure, including above-ground subways, bridges, and highways. NYC DOT is studying, evaluating and testing new treatments as well as identifying methods to manage these spaces to improve access, mobility, safety and connectivity.

There are approximately 300 linear miles of El-Space citywide. Some El-Space is characterized by active pedestrian and vehicular corridors. Other areas, however, are dark and underutilized and marked by conditions where pedestrians need to walk around storm water runoff and hear loud train and vehicular noises. As land uses change and the population of New York City increases, demand for these locations also increases. NYC DOT is taking a closer look at El-Space citywide to assess its potential for future growth with enhanced streetscapes and new public space.

In collaboration with the Design Trust for Public Space and in partnership with various community groups and organizations, NYC DOT has been pursuing “pop-up” installations, demonstrations and pilot tests as well as conducting a study and compiling an inventory of El-Space. Through the lessons learned during Phase I and Phase II of the project with the Design Trust for Public Space, the effort will apply enhanced lighting, green infrastructure, reflective paint, and seating in response to the various conditions that exist in El-Space. The furnishings, which will make up the ”El-Kit,” will enhance the streetscape experience for all users.

El-Space: Experimentation Before Implementation



"Under the Elevated: Experimentation before Implementation”
Video by S/Q Projects. Courtesy of the Design Trust for Public Space


El-Space Toolkit

El-Space Toolkit by Design Trust for Public Space and N.Y.C. D.O.T.

In February 2020, the Design Trust for Public Space and NYC DOT launched the “El-Space Toolkit” which features 11 case studies across North America. The toolkit covers the lifecycle of developing and implementing El-Space projects, highlighting lessons learned and how to improve El-Space conditions.

Learn more about these and other programs under elevated spaces in the El-Space Toolkit created by NYC DOT and Design Trust for Public Space


El-Kit

NYC DOT has developed designs and is now testing various replicable furnishings and amenities for deployment in El-Space citywide. Among the elements are reflective paint finishes, LED lighting, and green infrastructure installations as well as El-Space prototypes, including:

  • El-Box: Shipping container modified for concessions or community use
  • El-Fence: Movable outdoor fencing that features graphics and LED lighting
  • CityEl: Seating, lighting, and graphics installed around support columns at bus stops

NYC DOT will install and evaluate these El-Kit elements in Manhattan, Brooklyn, Queens and the Bronx before moving forward with a citywide application.

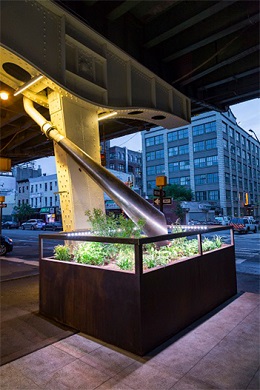

A brightly light space below an elevated roadway featured a stylist drainpipe leading to a tall, illuminated planter with green plants.
Green Infrastructure

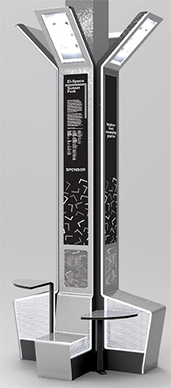

A rendering of “CityEl”, a tall silver and black structure that wraps around a structural column that provides seating and lighting around the column.
CityEl (Rendering Credit: Ciocchini Design)
A rendering of “El-Box”, a shipping container painted black with a window.
El-Box (Rendering Credit: ORE Design)
A rendering of “El-Fence”, colorful blocks of green and gray decorate a fence along a sidewalk brightening the space below an elevated roadway.
El-Fence Rendering

Sunset Park El-Space

Located beneath the Gowanus Expressway at 3rd Avenue and 36th Street in Brooklyn, the Sunset Park El-Space features new LED lighting that illuminates the structural surfaces and the volume of space defined by the columns of the viaduct. CorTen steel planters with low-light plantings capture storm water from the highway above via signature cone-like downspouts. Modular decking and other surface treatments organize the parking spaces while providing pedestrian circulation including a central walkway.

The project partner, Industry City, collaborated on the design, carried out the construction of the project, and is responsible for the maintenance of the amenities. NYC DOT and the Design Trust for Public Space with Industry City are currently working with a consultant team and other City agencies in evaluating the various treatments.

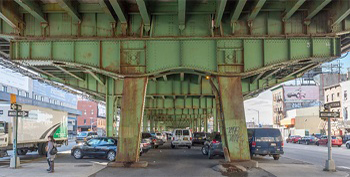

A rusting structure supporting an elevated roadway, with cars parked below it.
(Sunset Park, Brooklyn)
Pilot: Before

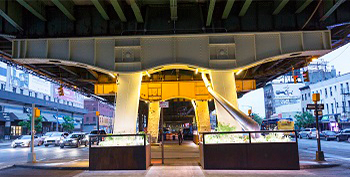

Below an elevated roadway, bright paint, lights and large, illuminated planters brighten the area near a sidewalk.

Pilot: After

Far Rockaway El-Space

The Far Rockaway El-Space pilot project is located on a property adjacent to the elevated A Train Beach 60th Street station near the Rockaway Freeway in Queens.

Phase 1: The first phase of this green infrastructure initiative included a dune-like planter with perimeter seating and specialized plantings to filtrate storm water runoff from the elevated train structure.

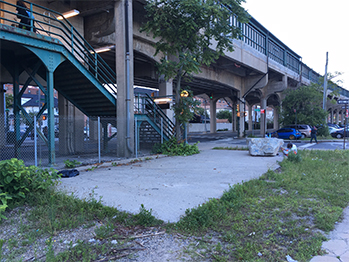

A concrete slab surrounded by green weeds at the base of a staircase from an elevated train.
(Rockaway Freeway, Queens)
Pilot: Before
On a sunny day, a large planter is filled with green shrubs and benches, located at the base of an outdoor staircase beside an elevated train.

Pilot: After

Phase 2: The second phase of the Far Rockaway El-Space pilot reclaims over 8,700 square feet of underused space near the elevated train station, by adding greenery and community programming space. This area features an El-Box, a retrofitted shipping container, which provides covered space for outdoor classroom activities.

NYC DOT and the Design Trust for Public Space partnered with Rockaway Waterfront Alliance (RWA) in an effort linked to RWA's Project Underway and Art Under the Elevated initiatives. With the help of volunteers and partner Rockaway Initiative for Sustainability and Equity (RISE), a local artist painted a colorful mural on the El-Box.

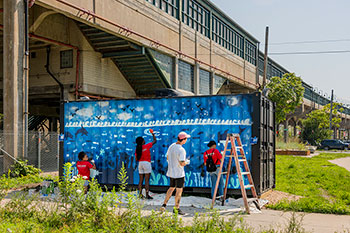

On a sunny day, volunteers paint a mural onto a shipping container positioned near a sidewalk adjacent to an elevated train station.
(Rockaway Freeway, Queens)
RISE volunteers paint a mural on the El-Box

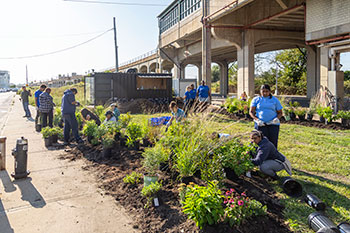

On a sunny day, volunteers plant shrubs between a green grass lawn and a sidewalk. In the background there is an elevated train structure.

Volunteers plant shrubs near the elevated train

Dutch Kills Street El-Space

Underutilized space between Queens Plaza South roadway and a storage lot under Queensboro Bridge ramps, has been transformed into the Dutch Kills Street El-Space. The project features a new lighting prototype, El-Fence, to illuminate the space with LED lights and bold graphics attached to a fence.

New landscaping, a sidewalk, and additional LED lighting under the ramp enhance the pedestrian space. Two Gabion planters made of steel baskets filled with stones, filter and slow storm water runoff from the highway above while watering new greenery in the planters. NYC DOT and Design Trust for Public Space partnered with Rockrose Development Corporation to design, build, and maintain this location.

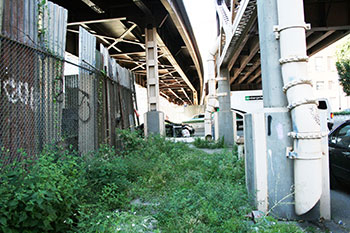

Below an elevated roadway, weeds fill the area between a rusty fence and a large support beam.
(Dutch Kills Street El-Space below the Queensboro Bridge, Queens)
Before

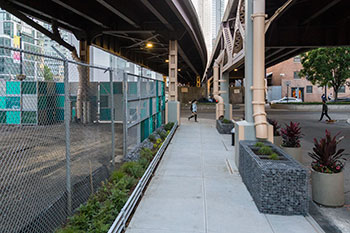

Planters line a clean sidewalk below an elevated roadway. One side of the sidewalk features a chain link fence and the other side features larger planters with green and red plants.


After
